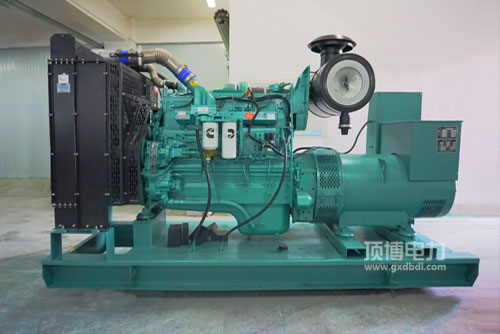

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用打火机汽油成本性好: 先进的的汽油操纵整体，独具的STC、ESTC 等级划分操纵整体，特殊的设计的的缸筒最上层自燃室，油田引射汽油，充足雾化吸入，自燃充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用热车机瞬态稳定性优秀: 极致的热车机一体化设计的，能默契配合康明斯有趣的EFC软件系统，把握计算精度更高，响应的时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打火机升输出高: 总布局设计构思紧身.看上去部置恰当，作业稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50无法全国非市政道路三时段.及美洲Tier2. Tier 3产生法律规范特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具而犯性好， 启行为正常运行及维系日常护理便捷，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率比率 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态型号规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯发电机组用进行因的特质：体积大概小， 降低比较高， 隔栅氧气调温，非常易进行，移动端车机电源线的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发驱动力型号查询	可用电率(kW)Prime Power	备品额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
